Description

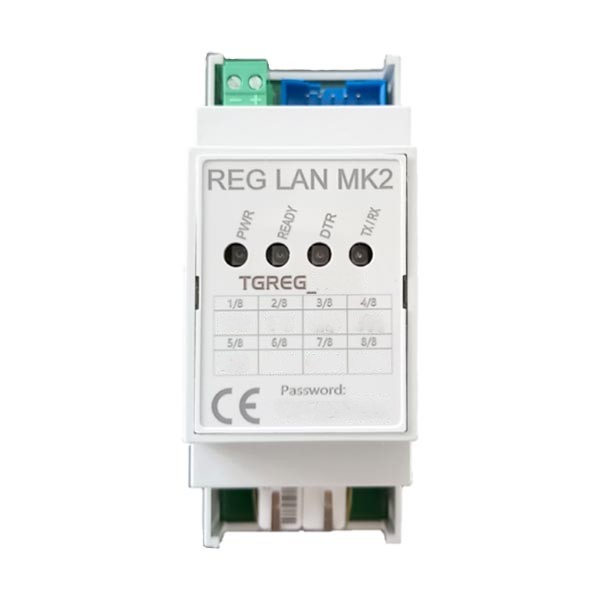

The module for the REG system connection to the remote control website is set up for mounting in electrical panel box, on standard DIN rail (2 modules) and is set up to be connected to the network through Ethernet / LAN cable (not supplied).

The module comes complete with the serial cable for the connection of the module to the regulator and the information leaflet with the name assigned to the system (example TGREG_1587), the identification code (8 digits) and the password.

On the module there are leds that indicate the module conditions.

The default module configuration is DHCP active (automatic assignment of IP addresses). Be sure that there is a DHCP server in the net that assigns the addresses, included the DNS ones.

The module goes to the server entry.s5a.eu through the TCP 4005 door, be sure that the firewall/router allows this connection.
