Description

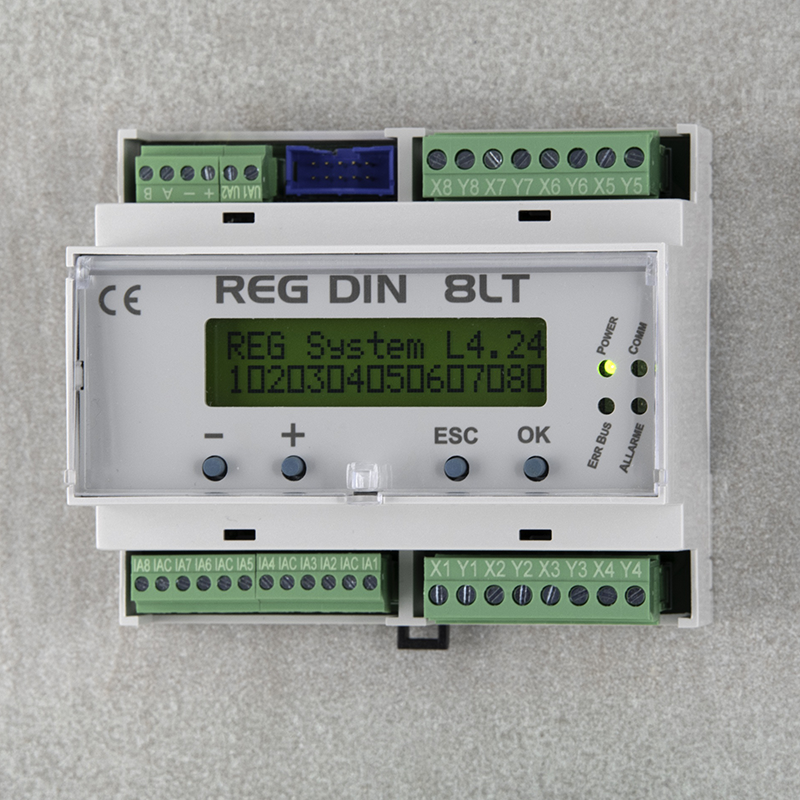

The controller is set up for mounting in the electrical panel, on a standard DIN rail (6 modules)

Link with expansion, sensors and interfaces is through the proprietary RS485 bus.

It is equipped with 8 digital/analog inputs for passive temperature probes or potential-free contacts, while the outputs are 8 digital (Form A, NO output relay) and two analogue (0/10V). All connections are set up through removable terminals. The controller is equipped with LEDs for status indication, LCD display and buttons for technician or, for simple systems, user interaction.

A RS232 port allows connection to PC for configuration and via LAN or GSM module for system remote management.

The controller (with the necessary I/O expansions) can manage:

• up to 32 zones;
• up to 8 direct and/or mixed circuits;
• up to 8 dehumidification, integration and renewal units;
• up to 3 generators via dry contact or 0/10V ;
• up to 8 generators using the OpenTherm protocol;
• the domestic hot water subsystem;
• the solar thermal circuit;
• free signals (control probes and alarms);
• up to two touch screen displays (REG-TFT o REG-DOT-B).
• one BMS interface (REG-KNX, UGW-MBS-RTU, UGW-MBS-TCP)
